Flexible Transparent LED Film Display

Short Description:

● High transmittance: the transmittance rate is up to 90% or more, without affecting the glass lighting.

● Easy installation: no need for steel structure, just gently paste the thin screen, and then the power signal access can be; the screen body comes with adhesive can be directly attached to the glass surface, the colloid adsorption is strong.

● Flexible: applicable to any curved surface.

● Thin and light: as thin as 2.5mm, as light as 5kg/㎡.

● UV resistance: 5~10 years can ensure no yellowing phenomenon.


Product Tags

Product Details:

Pixel Pitch: 4mm, 4-8mm, 6mm, 8mm, 10mm, 16mm, 16-32mm, 20-60mm, 32mm.

Applications: Glass window brand store, Glass parapets in shopping malls, Glass curtain wall of commercial buildings, Glass windows, such as banks, subways, car 4S stores and so on.

Transparent LED Film Display Specification
Pixel Pitch P4 P4-8 P6 P8 P10 P16 P16-32 P20-60 P32
Pixel 62500p;points/m2 31250 points/m2 27556 points/m2 15625 points/m2 10000 points/m2 3844points/m2 1922points/m2 800points/m2 961points/m2
LED specification SMD1010 (light drive in one) SMD1010 (light drive in one) SMD2121 (light drive in one) SMD2121 (light drive in one) SMD2121 (light drive in one) SMD2121 (light drive in one) SMD2121 (light drive in one) SMD2121 (light drive in one) SMD2121 (light drive in one)
Pixel composition 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Module Size 800mm*240mm 1000mm*240mm 1000mm*240mm 1000mm*240mm 1000mm*240mm 1000mm*240mm 1000mm*240mm 1000mm*240mm 1000mm*240mm
Module Resolution 200*60 250*30 166*40 125*30 100*24 62*15 62*7 50*4 31*7
Pixel resolution 250*250/㎡ 250*125/㎡ 166*166/㎡ 125*125/㎡ 100*100/㎡ 62*62/㎡ 62*31/㎡ 50*16/㎡ 31*31/㎡
Permeability ≥85% ≥85% ≥85% ≥85% ≥90% ≥90% ≥95% ≥95% ≥95%
Box wiring mode Internal wiring (clean back) Internal wiring (clean back) Internal wiring (clean back) Internal wiring (clean back) Internal wiring (clean back) Internal wiring (clean back) Internal wiring (clean back) Internal wiring (clean back) Internal wiring (clean back)
Weight ≤ 3.5KG/m2 ≤ 3.5KG/m2 ≤ 3.5KG/m2 ≤ 3.5KG/m2 ≤ 3.5KG/m2 ≤ 3.5KG/m2 ≤ 3.5KG/m2 ≤ 3.5KG/m2 ≤ 3.5KG/m2
White balance brightness ≥3000cd/㎡ ≥3000cd/㎡ ≥3000cd/㎡ ≥3500cd/㎡ ≥3500cd/㎡ ≥3500cd/㎡ ≥2500cd/㎡ ≥600~800cd/㎡ ≥1500cd/㎡
Peak power consumption 400 W/㎡ 400 W/㎡ 400 W/㎡ 400 W/㎡ 400 W/㎡ 400 W/㎡ 400 W/㎡ 400 W/㎡ 400 W/㎡
Average power consumption About 200 W/㎡ (depending on the video source) About 200 W/㎡ (depending on the video source) About 200 W/㎡ (depending on the video source) About 200 W/㎡ (depending on the video source) About 200 W/㎡ (depending on the video source) About 200 W/㎡ (depending on the video source) About 200 W/㎡ (depending on the video source) About 200 W/㎡ (depending on the video source) About 200 W/㎡ (depending on the video source)
Refresh frequency ≥3840s ≥3840s ≥3840s ≥3840s ≥3840s ≥3840s ≥3840s ≥3840s ≥3840s
Grayscale level 16Bit 16Bit 16Bit 16Bit 16Bit 16Bit 16Bit 16Bit 16Bit
Brightness control level Grade 0-255 Grade 0-255 Grade 0-255 Grade 0-255 Grade 0-255 Grade 0-255 Grade 0-255 Grade 0-255 Grade 0-255
Color temperature 3200K-8500K (adjustable) 3200K-8500K (adjustable) 3200K-8500K (adjustable) 3200K-8500K (adjustable) 3200K-8500K (adjustable) 3200K-8500K (adjustable) 3200K-8500K (adjustable) 3200K-8500K (adjustable) 3200K-8500K (adjustable)
Frame change frequency ≥60Hz ≥60Hz ≥60Hz ≥60Hz ≥60Hz ≥60Hz ≥60Hz ≥60Hz ≥60Hz
Viewing angle H-H140 degrees V-V140 degrees H-H140 degrees V-V140 degrees H-H140 degrees V-V140 degrees H-H140 degrees V-V140 degrees H-H140 degrees V-V140 degrees H-H140 degrees V-V140 degrees H-H140 degrees V-V140 degrees H-H140 degrees V-V140 degrees H-H140 degrees V-V140 degrees
Input signal DVI  VGA, composite video DVI  VGA, composite video DVI  VGA, composite video DVI  VGA, composite video DVI  VGA, composite video DVI  VGA, composite video DVI  VGA, composite video DVI  VGA, composite video DVI  VGA, composite video
Control screen mode Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen) Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen) Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen) Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen) Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen) Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen) Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen) Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen) Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen)
Protection grade IP30 IP30 IP30 IP30 IP30 IP30 IP30 IP30 IP30
Power supply requirements AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V) AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V) AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V) AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V) AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V) AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V) AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V) AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V) AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V)
working temperature -20~50 ℃ -20~50 ℃ -20~50 ℃ -20~50 ℃ -20~50 ℃ -20~50 ℃ -20~50 ℃ -20~50 ℃ -20~50 ℃
Theoretical service life 100000 hours 100000 hours 100000 hours 100000 hours 100000 hours 100000 hours 100000 hours 100000 hours 100000 hours

You’d better buy all modules at a time for a led screen, in this way, we can make sure that all of them are of the same batch.

For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.

So our modules can’t work together with your previous or later modules.

If you have some other special requirements, please contact our online sales.

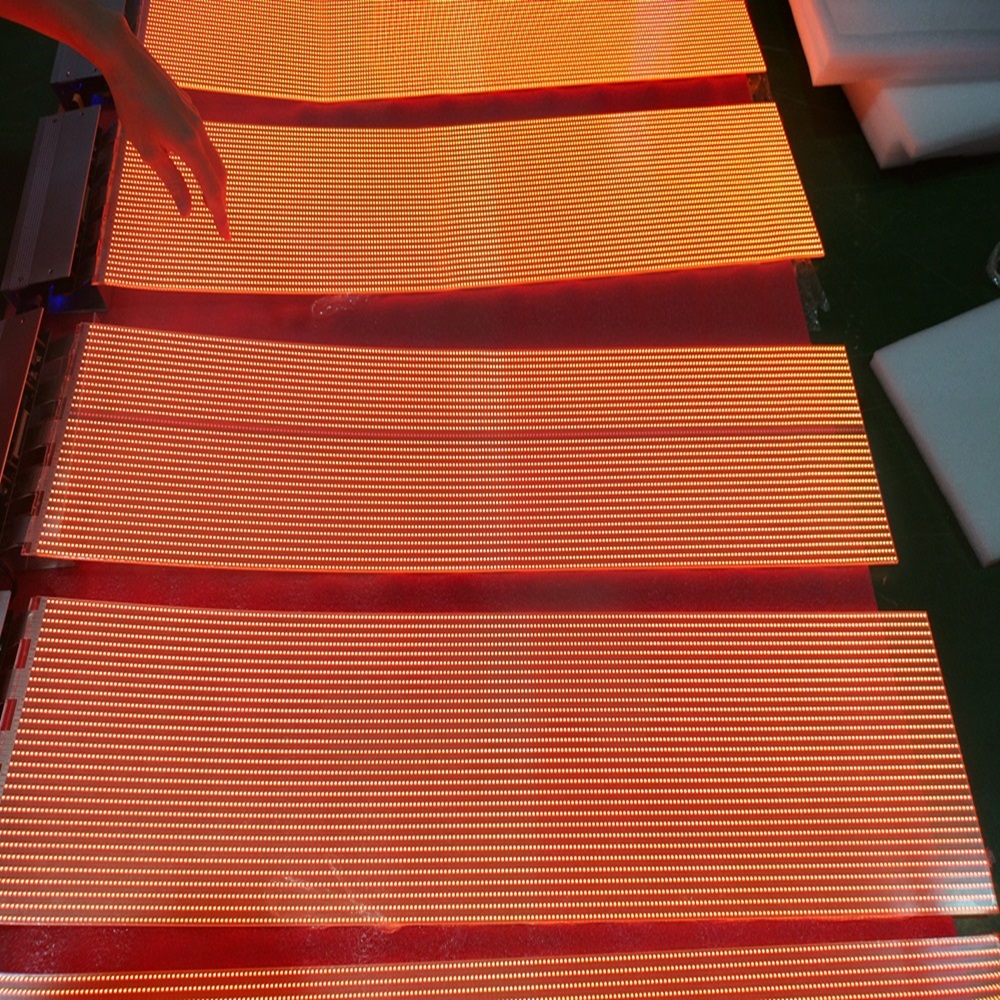

Transparent LED Film Display1

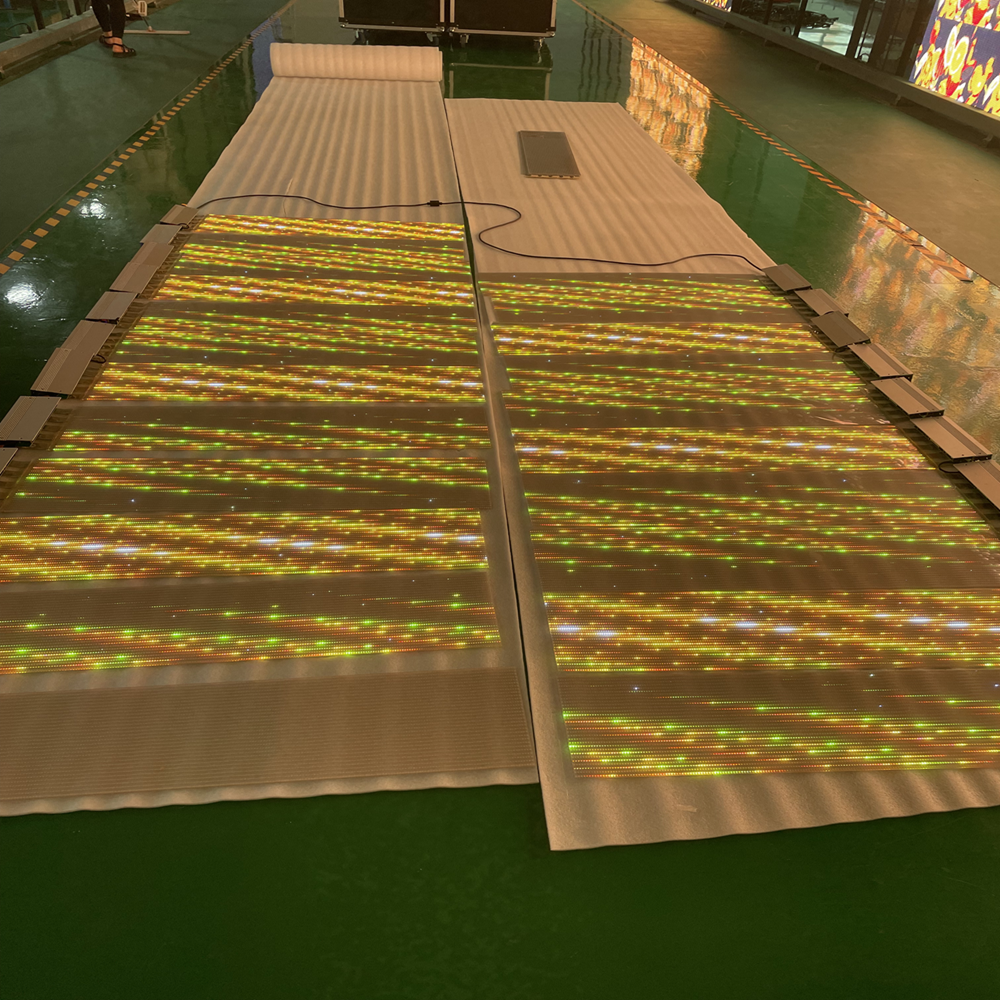

Transparent LED Film Display2

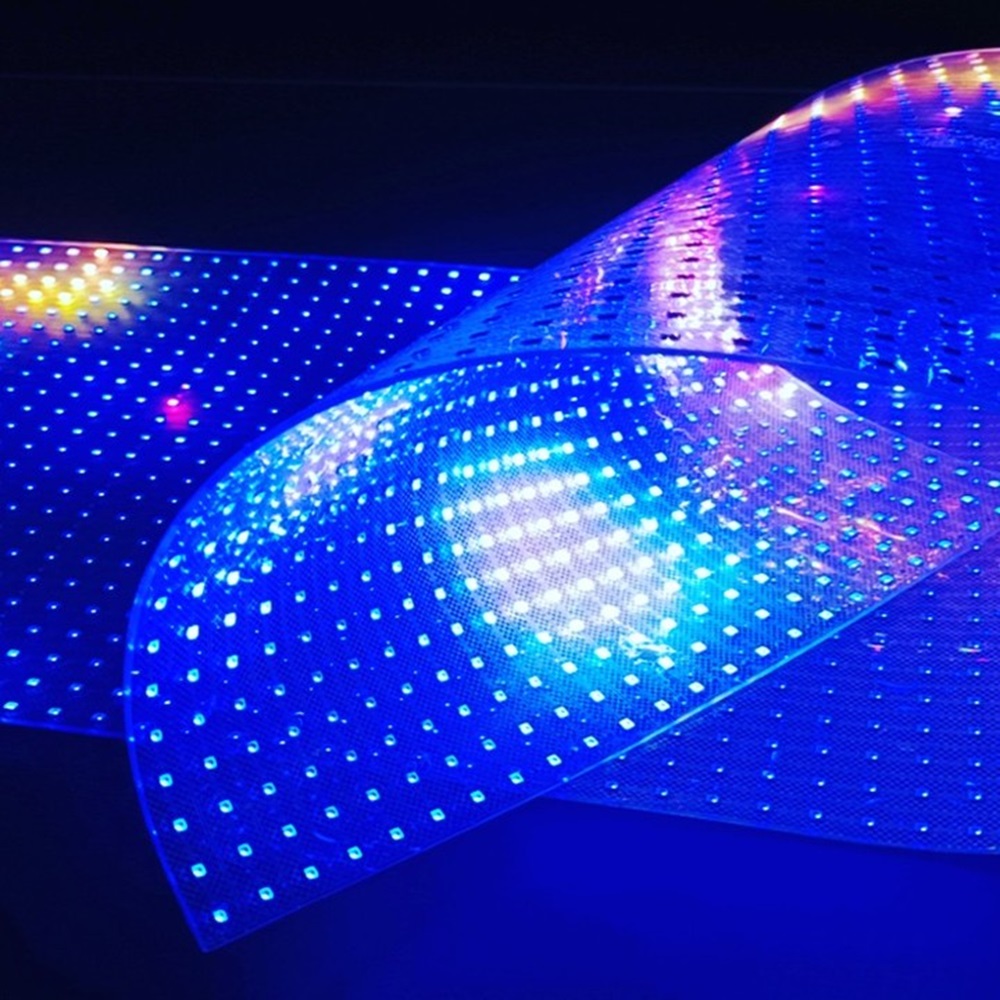

Transparent LED Film Display_3
