P6.67 Outdoor SMD Front Service LED Display Screen.
This P6.67mm outdoor LED display screen panels are geared with front and back serviceable modules, which greatly solves the issue of limited space for installation. Basides, the display screen excels in image details, brightness and view angles. It is a perfect choice to be placed at shopping centers, highways, railway stations, airports, stadiums, etc.
Features:
- Available in both front and rear access for servicing;
- Wide viewing angles and excellent color uniformity;
- Stable performance and great heat dissipation;
- Low Power consumption and long life span;
- IP65/54 protection rating to perfectly work in all weather conditions;
- Synchronous control with PC or asynchronous mode without PC for small size screens;
- Brightness is adjustable manually or automatically against to light changing;
- All programs can be digitally edited and played in a loop automatically on the timetable;
- Compatible with all kinds of signal inputs via led video processor (VGA, HDMI, SDI, DVD, TV, etc);
- Can be controlled and monitored with camera at any time & anywhere via internet access;
- Online detecting and fault informing is optional with monitored card;
- Supports all windows operation systems-XP,7/8,Vista for its software;
- Supports NOVA and other popular control systems.

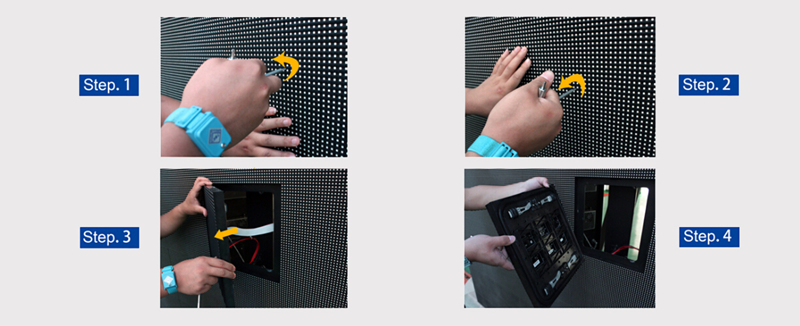

How to fix or dismantle LED Screen ?
Outdoor P6.67 LED Display Parameter
|
|
Pixel Pitch
|
6.67mm
|
Module Size
|
320x320mm
|
Module Resolution
|
48x48 pixels
|
LED Lamp
|
SMD2727
|
|
Cabinet Size
|
960x960mm
|
Cabinet Resolution
|
144x144 pixels
|
Cabinet Materials
|
Die-casting Aluminum
|
Cabinet Weight
|
≦28kg
|
Pixel Density
|
22477 pixels/m2
|
Brightness
|
≦6500cd
|
Refresh Rate
|
≧1920HZ
|
|
Grey Scale
|
14-16 bit
|
Avg.Power Consumption
|
450W/㎡
|
Max.Power Consumption
|
1000W/㎡
|
View Angle
|
V 140°/ H 140°
|
IP Rate
|
IP65
|
Service
|
Front / Rear Maintenance
|
Working Environment
|
-20℃~50℃, 10%-90% RH
|
Storage Environment
|
-40℃~60℃, 10%-90% RH
|
Input Signal
|
VGA,DVI,HDMI,SDI,etc
|
