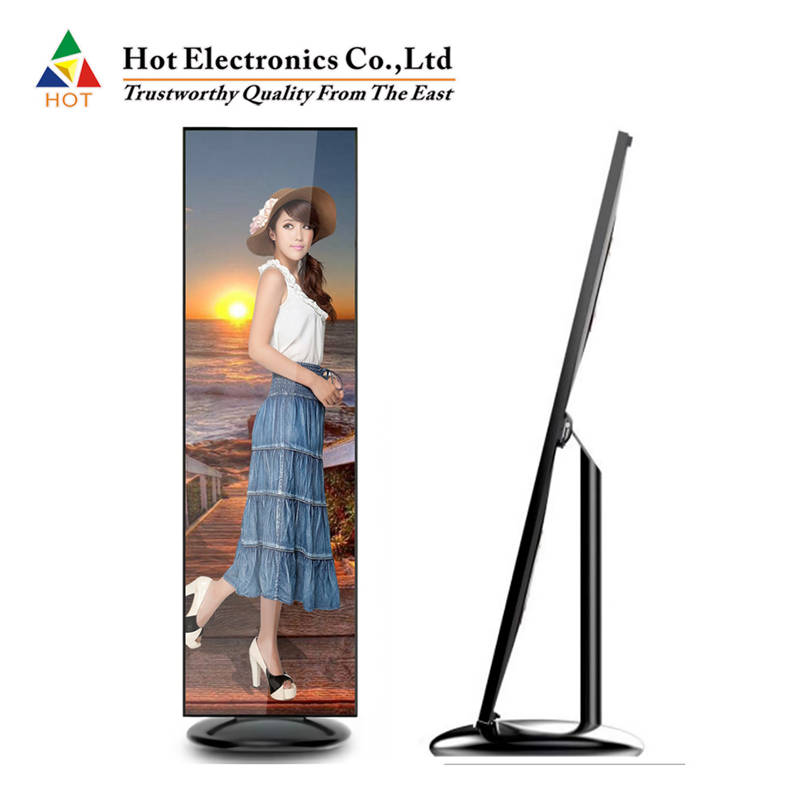

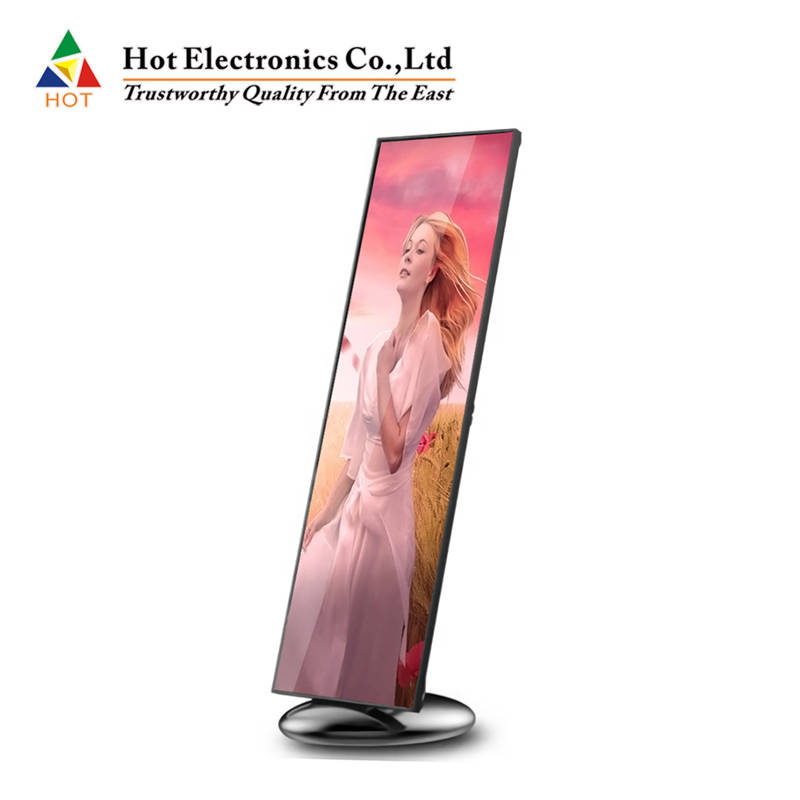

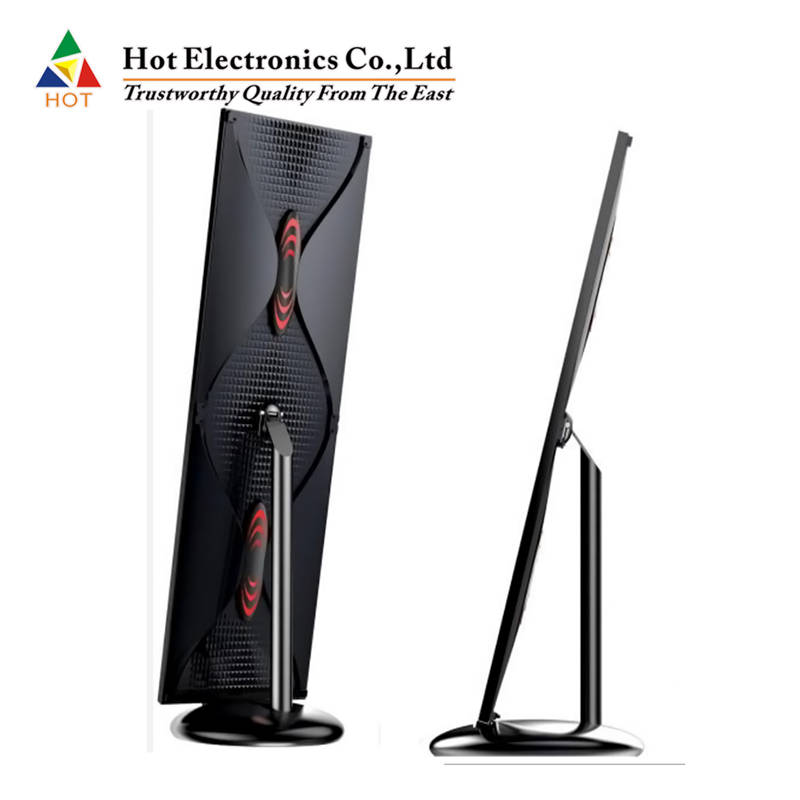

Wi-fi Intelligent led Adverting Board
Wi-fi Intelligent led Adverting Board
★ Ayschronous system control, wifi, 3G/4G, USB, internet convenient long distance control way
★ Easy remove maintenance, front access
★ Acrylic suface protection
★ Suitable for hanging, wall mounted, base standing, bracket standing and creative installation
★ Customize bigger or smaller size
★ Multiple appliance- hotel, bank, hospital, restaurant etc
| Wi-Fi Intelligent Led Adverting Board--Indoor | |||
| Pixel pitch | P2.5 | P3 | |
| Display Parameters | LED Shape | SMD 3 in 1 | SMD 3 in 1 |
| LED Configuration | 1R1G1B | 1R1G1B | |
| Module Size | 160mm*160mm | 192mm*192mm | |
| Drive Method | 1/32 | 1/32 | |
| Regular Size | Display Size | 640*1920mm | 576*1920mm |
| Display Resolution | 256*768 | 192*640 | |
| Module Number | 4*12 | 3*10 | |
| Optical | Brightness | 1000cd/m | 1000cd/㎡ |
| Viewing Angle | H/V 160/160 | H/V 160/160 | |
| Power | Max power consumption | 976w/㎡ | 880w/㎡ |
| Ave power consumption | 600w/㎡ | 570w/㎡ | |
| Working Voltage | 220V/110V | 220V/110V | |
| Control system | Frame Frequency | 60 85 HZ | 60 85 HZ |
| Refresh Rate | 1920Hz | 1920Hz | |
| Date Transmission | CAT 5/Optic Fiber | CAT 5/Optic Fiber | |
| Image Source | S Video PAL/NTSC | S Video PAL/NTSC | |
| Format | Video Compatibility DVI VGA composit |
Video Compatibility DVI VGA composit |
|
| Reliability | Working Temperature | 20 65 | 20 65 |
| Life Span | 100000Hours | 100000Hours | |
| IP Rate | IP 54 | IP 54 | |
